KUFU Culture
Modular Drawer System
2022
Concept, Development, Electronics, Prototype + Production

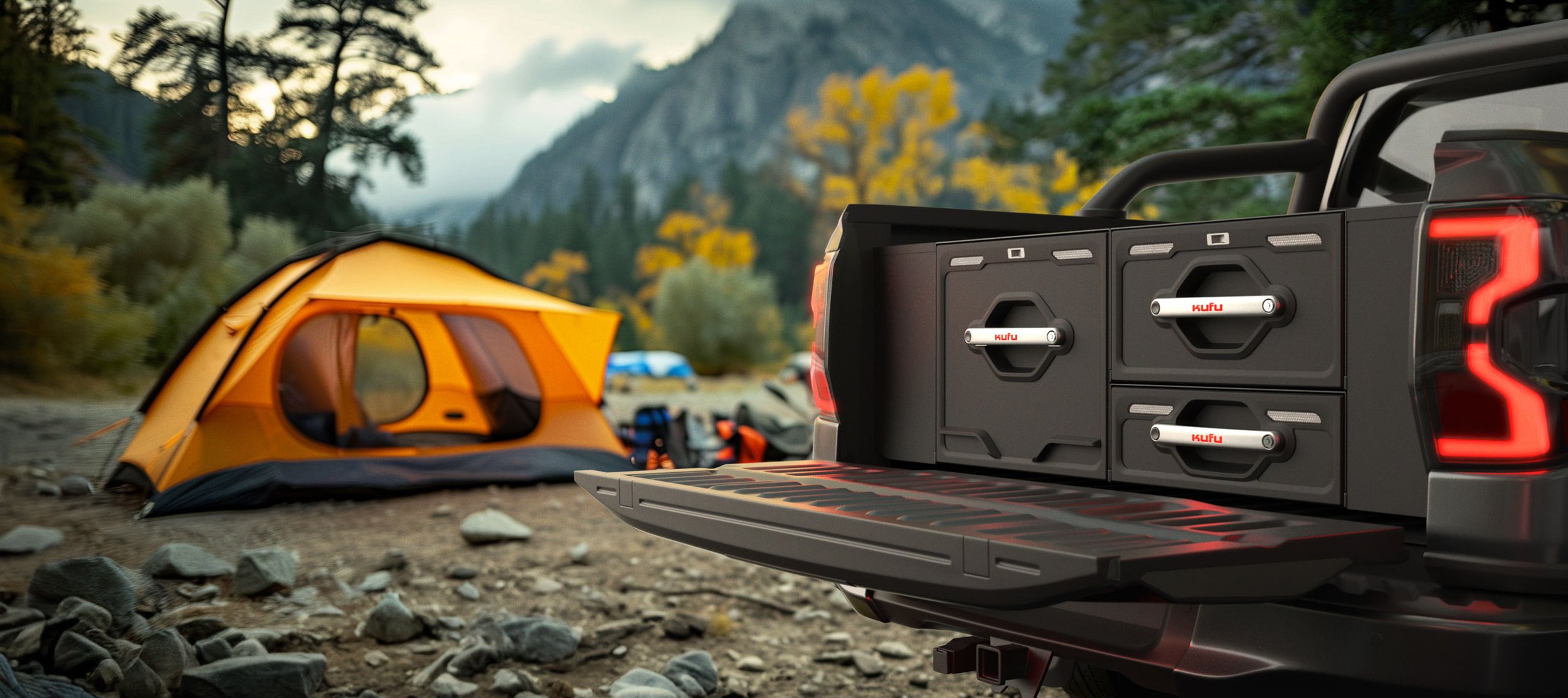

KUFU Modular Drawer System
Adaptability meets Endurance: Tailored Modular Vehicle Storage Solutions for Every Application
The KUFU Modular Drawer System, developed with the vision of revolutionising vehicle storage through proprietary KUFU Catch-and-Click™ technology, caters to the diverse needs of recreation, trades, defence, medical, and fleet industries. The system combines a unique compression-moulded design, all-weather sealing, external + internal lighting, and anti-slip surfaces with a robust construction, offering unparalleled strength, adaptability, and security. Compatible with a variety of major vehicles including SUVs, tray tops, troop carriers, vessels, and aircraft, this Australian-designed system complies with ADR 43/02 safety standards. This ensures a seamless user experience for organising and securing cargo and equipment, and efficient installation for a variety of use cases.
Complete Product Development: Industrial Design + Mechanical Engineering + Electronics Design
Mastering Modularity
Bridging the gap between user needs and innovation in vehicle storage
The challenge was to design a versatile vehicle storage solution that overcomes the limitations of modularity, adaptability, security, and weather resistance in traditional systems. The KUFU Drawer System had to balance user-friendliness, safety, and efficient organisation across varied sectors, while integrating a swift installation process, robust design, safety regulation compliance, integrated lighting, utilitarian aesthetics, and a premium feel. Central to the project was the development of a comprehensive compression-moulded platform, designed to be adaptable across a multitude of vehicle types and accommodate six lengths and three heights, promoting efficient organisation. The system required a straightforward assembly process, durable materials, and compliance with Australian ADR requirements, all while catering to the distinct needs of diverse users and industries.
Quick + Easy Install and Removal.
A unique catch rear bracket that intercepts the drawer, then slides and locks with a locking pin at the front. The pin access is only available when the drawer is opened, preventing theft.
Equipped with an automatic fade-out internal LED and switch-controlled external task lights, the drawer system illuminates drawer contents and outdoor surroundings effectively.
As a modular system the drawers offer 6 lengths and 3 height options. With 180mm, 280mm and 460mm high options, the 460mm offers the largest volume on the market and lengths from 750mm to 1700mm - installation possibilies are endless.
Truly Sealed: Designed for external use, it features gaskets and venting to shield moving parts from dust + moisture, ensuring durability in harsh conditions. The system can be washed externally with water + soap, ensuring ease of maintenance.
Unmatched load handling capabilities with 1-tonne top capacity and 150kg per drawer - allowing efficient organization and protection of tools or gear, via KUFU patented slide system + robust composite design, made for real-world demands.
Engineered for Real-World Demands
Designed, Engineered + Assembled in Australia
The KUFU Modular Drawer System brings a robust, innovative solution to diverse industries and users. Its triple-slide design maximizes storage, and the patented Catch-and-Click™ system ensures swift installation and removal. Custom extruded aluminium rails and a premium TPE rubber coextruded top sheet combine to create a sleek, utilitarian finish. This versatile system seamlessly integrates with modern vehicles, maintaining a balance of aesthetic appeal and functionality. User experience is optimized with a quick-release Catch-and-Click™ mechanism, versatile LED lighting, multiple size options, and weather-resistant construction. Compliant with ADR42/05 and ADR69/00 safety standards, the crash-tested system has incremental locking points, secure transportation features, and a 1-tonne load rating, delivering stability and reliability. Designed and assembled in Australia, the KUFU Drawer System withstands harsh environments with its high-quality materials and construction. It meets the needs of a wide range of users, from recreation to defence, medical, and fleet industries. The created IP underpins future product line development, affirming the KUFU brand's innovation and adaptability.
Design Registrations
Australia 202110927, 202110924, 202110925, 202110926
European Union 008654297-0001, 008654297-0002, 008654297-0003, 008654297-0004
USA 29/804,502 29/804,504 29/804,505 29/804,507
United Kingdom 6175068, 6175069, 6175070, 6175071
*Patent Pending
Australia 2021900456 2021900462 2022201080 2022201079
Europe 22157805.7 22157806.5
USA 17/677,178 17/677,192
